Offer CCTVSTAR SIP-V107-AFD 520TVL 1/4" 100X Zoom (10X Optical / Digital) 3.8-38.mm Sony Super HAD CCD Vandal Proof Outdoor Weatherproof IP66 CCTV Surveillance Security Compact PTZ Camera w/ 360° Endless Pan & 5°~90° Tilt, 32 Presets, & Auto Focus / Iris


CCTVSTAR SIP-V107-AFD 520TVL 1/4" 100X Zoom (10X Optical / Digital) 3.8-38.mm Sony Super HAD CCD Vandal Proof Outdoor Weatherproof IP66 CCTV Surveillance Security Compact PTZ Camera w/ 360° Endless Pan & 5°~90° Tilt, 32 Presets, & Auto Focus / Iris Massive Saving, Order Now! It is truly an amazing CCTVSTAR SIP-V107-AFD 520TVL 1/4" 100X Zoom (10X Optical / Digital) 3.8-38.mm Sony Super HAD CCD Vandal Proof Outdoor Weatherproof IP66 CCTV Surveillance Security Compact PTZ Camera w/ 360° Endless Pan & 5°~90° Tilt, 32 Presets, & Auto Focus / Iris.I highly recommend CCTVSTAR SIP-V107-AFD 520TVL 1/4" 100X Zoom (10X Optical / Digital) 3.8-38.mm Sony Super HAD CCD Vandal Proof Outdoor Weatherproof IP66 CCTV Surveillance Security Compact PTZ Camera w/ 360° Endless Pan & 5°~90° Tilt, 32 Presets, & Auto Focus / Iris for anyone.I absolutly love it!

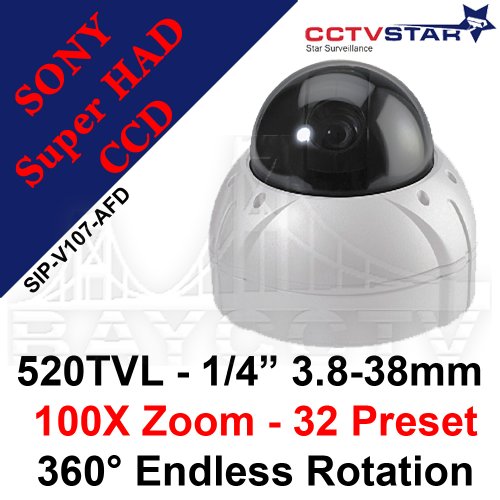

CCTVSTAR SIP-V107-AFD is a High Resolution 520 TVL (Color) / 570 TVL (B/W) 1/4" 100X Zoom (10X Optical / Digital) Sony Super HAD CCD Vandal proof Outdoor / Weatherproof IP66 CCTV Surveillance Compact PTZ Camera. This SIPV107-AFD comes with 3.8-38.mm lens, RS-485 interface, and thermal sensor and cooling fan, it able to do 360° Endless Pan, 5°~90° Tilt, 32 Presets positions & Auto Flip. This More Detail

CCTVSTAR SIP-V107-AFD 520TVL 1/4


  • Image Sensor : 1/4" Sony Super HAD CCD
  • Effective Pixel : NTSC: 768(H) x 494(V) / PAL: 752(H) x 582(V)
  • Scanning System : 2:1 Interlace
  • Sync. System : Internal
  • Resolution : Tru-520 TV Lines (Color) / Tru-570 TV Lines (B/W)
  • Video Output : 1.0 Vp-p (Sync. Negative) with 75? Termination
  • S/N Ratio : 50 dB or More (AGC Off)
  • Min. Illumination : 0.001 Lux (Color w/Sense up) / 0.00001 Lux (B/W w/ Sense up)
  • Gamma ; r = 0.45
  • Shutter Speed : Auto: x128 ~ 1/60(1/50)~1/120,000sec
  • White Balance : ATW / AWC / Manual[R,B] / 1,800°K / 10,500°K
  • DNR : Low / Middle / High / Off
  • Sense Up : x2 ~ x128
  • Reverse (Mirror) : Normal / Reverse / Flip / Rotate
  • OSD : YES
  • ZOOM : Optical 10X, Digital 10X
  • Focal Length : f=3.8(W)~38.0(T)mm / F1.8(W)~2.8(T)
  • Angle of View : 51.2° (Wide End), 5.58° (Tele End)
  • Min. Working Distance : 0.1M
  • Moving Speed : Pan: 9°/s~93°/s, Tilt: 9°/s~66°/s
  • Moving Angle : Pan: 0°~360°, Tilt: 5°~90°
  • Communication : RS-485
  • Camera ID Setup : 1~255 Selectable
  • Protocol : Pelco-D, Pelco-P
  • Baud rate : 2400bps, 4800bps, 9600bps
  • Power Supply : Regulated 12V DC or 24V AC
  • Consumption Current : Max. 800mA
  • Dimensions : Ø5.9 X 5.28(H) inch
  • Weight : Approx. 2.64 lb
  • For More Information Contact (650) 993-CCTV
